This machine for purpose of food, electronic, pharmacy, chemical industry etc.

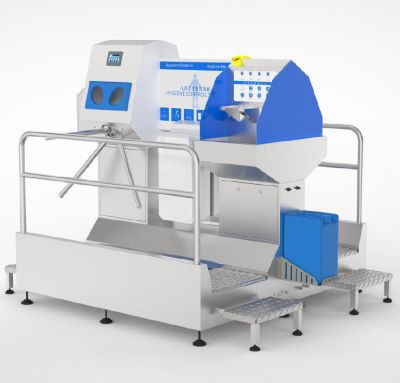

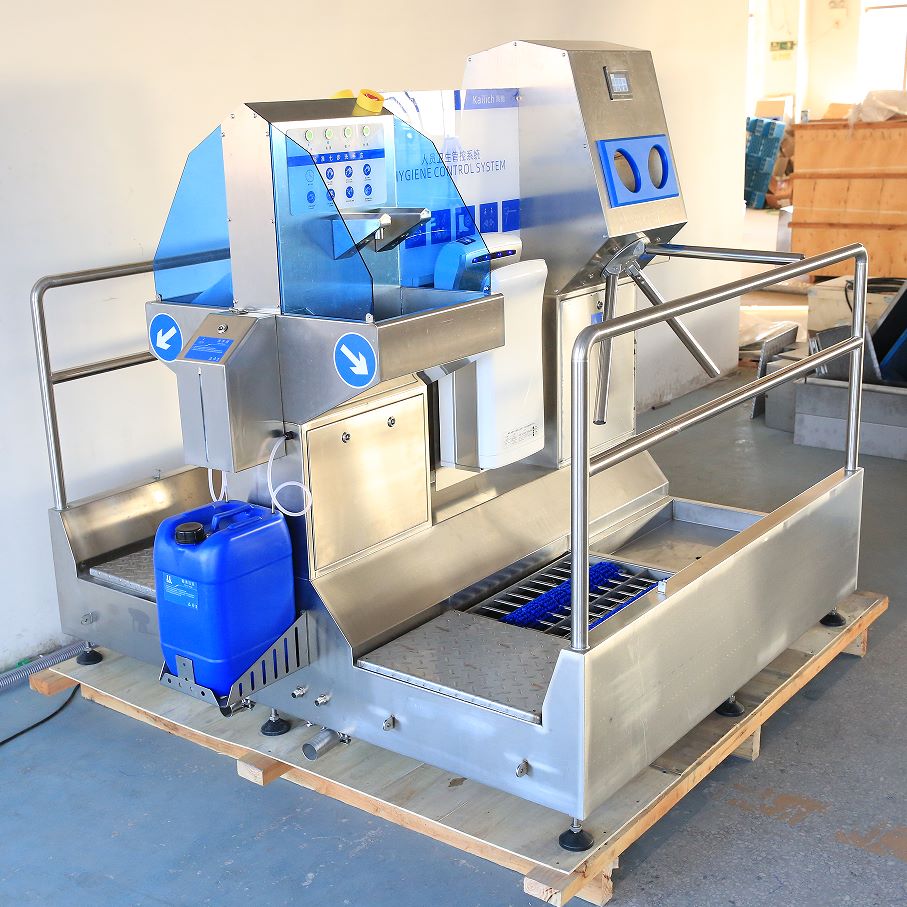

This hygiene staion is mainly suitable for food, electronic, pharmacy, chemical manufacturing company, The products is made of material of SUS304 which is comply with the standard of food industry. We adopt the one-stop total solution to clean and disinfect on the product. The design of through start upon sensor induction avoid cross contamination due to touch free operation. The machine comes with a tripod turnstile,user are coerced into cleaning and disinfecting hand before entrance,one-stop solution to clean and disinfect hand and sole.
Function & features:
l one-stop solution to clean and disinfect hand and sole.
l Through start upon sensor induction avoid cross contamination
l Hand cleaning function: Inductive soap liquid dispenser,inductive washing hand,inductive drying hand,inductive disinfection.
l tripod turnstile: user are coerced into cleaning and disinfecting hand before entrance
Working principle:
l Motor drive the 2 brushes on the clean stage to clean sole.
l User stand on the clean stage, the brushes rotate to clean the shoe soles.
l Start upon sensor induction, stop upon time out.
Installation:
l Need a flat and smooth floor indoor, to put the machine.
l Need water supply and drainage pipe or hose to connect.
Specification | Parameter | |
Model | HCS83506 | |
Electrical control | Sensor | OMRON |
PLC | OMRON | |
Touch Screen | Kinco | |
Hygiene Control | Control SYS Time setting range(0.1~60S) | |
Hand Hygiene | 1：Wet hands，2：Liquid Soap，3:Rub hands 15~20s，4:Rinse hands，5:Dry Hands，6:Disinfect Hands | |
Shoe Hygiene | Sole Wash | |
Start type | Start upon sensor induction | |
Brush Material | Nylon 140*600mm | |
Brush length | Sole Wash（2PCS） | |
Disinfectant container(L) | Hand Soap 5L Hand Disinfect 5L Sole Wash 5L | |
Inlet part/pressure | Solenoid valve （SS304）/ 3~4bar 0-40℃ | |
Inlet connector | DN15 or 1/2" female threaded | |
Drainage connection | 50mm | |
Voltage | AC220 50~60Hz | |
Rated Power(W) | 2250W | |
Main material | SUS304 1.5~3.0 | |
LXWXH(mm) | 2250*960*1800 | |
Weight(KG) | 220KG | |
Package | Plywood case | |
