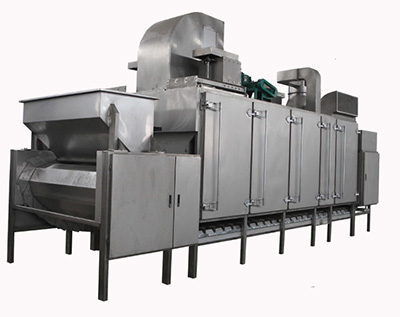

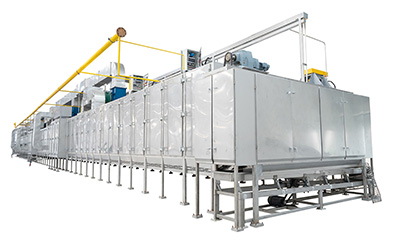

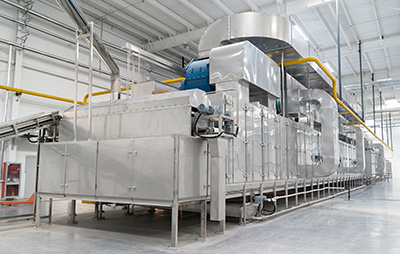

GLD dehydration dryer is a special equipment developed on the basis of traditional mesh belt dryer. It has high practicability and energy efficiency. It is widely used for the dehydration and drying of various vegetables and fruits, such as garlic slices, onions, carrots, pumpkins,, yams, sweet potatoes, etc. it has more than 50 users and more than 80 sets of equipment on production. GLD has been an experienced vegetable drying equipment manufacturer in China. So far, the third generation GLD-W series vegetable dehydration dryer has been developed and launched.
Applicability: it can meet the drying and mass continuous production of root, stem, leaf strip, block, flake, large particle and other vegetable materials, and retain the nutritional composition and color of the product to a greater extent.
Typical dry materials include garlic slices, pumpkin, carrot, yam, bamboo shoots, horseradish, onion, apple, etc.

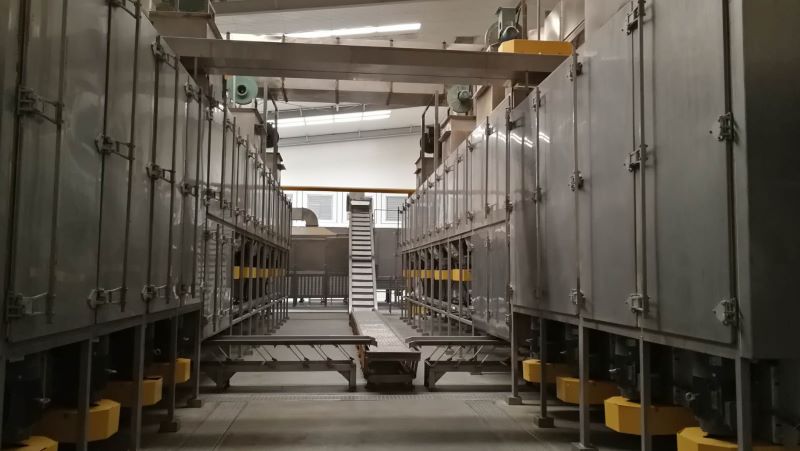

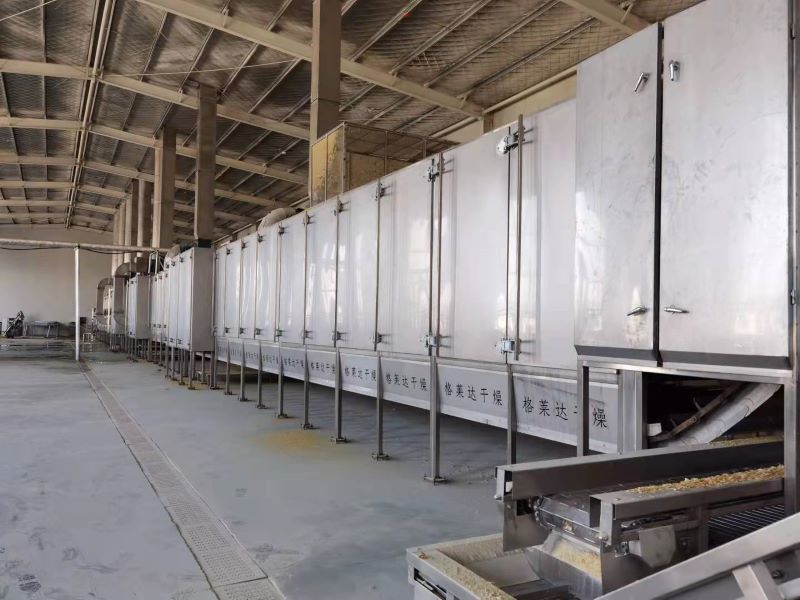

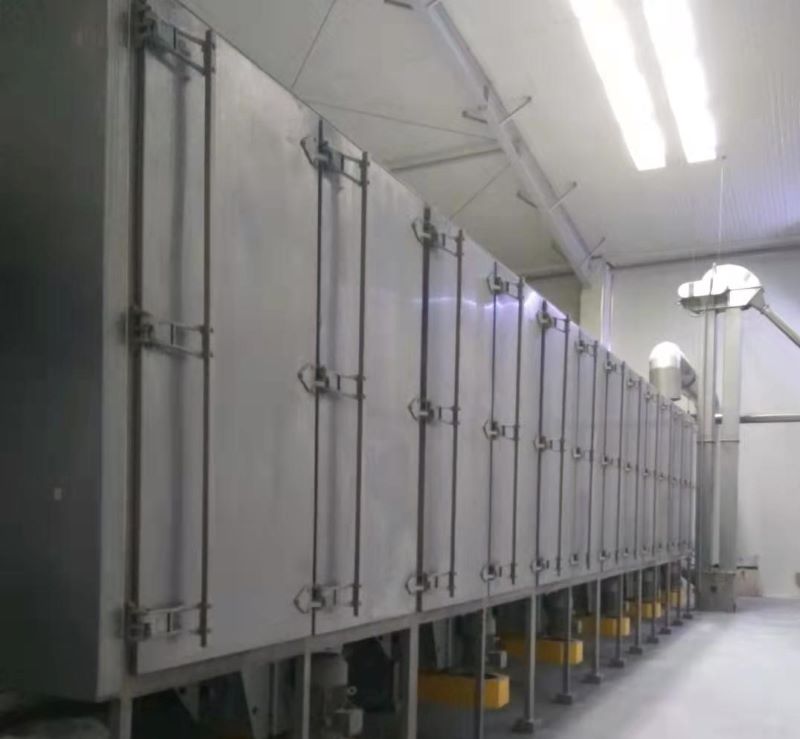

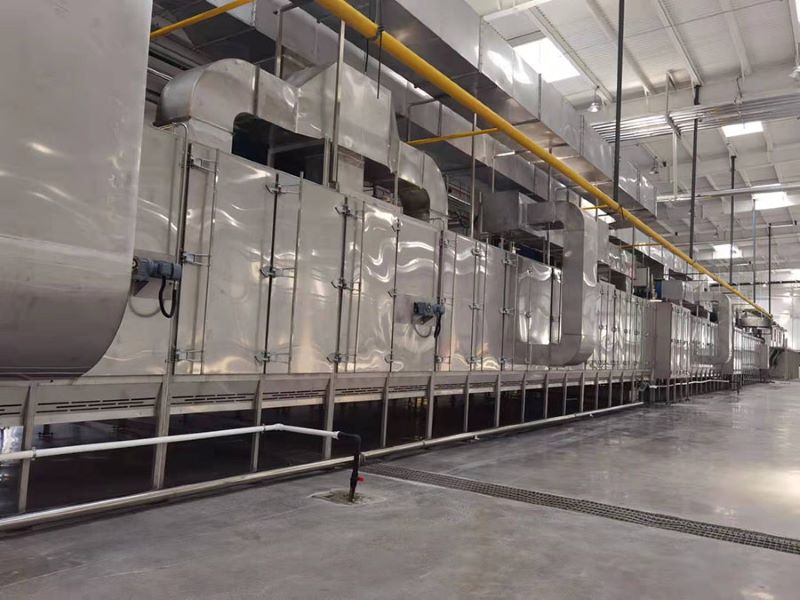

Reference Projects：
Garlic dryer
Onion dryer
Almond dryer
Apple dryer
A:Single Layer Three Stages:
| Model Item | S3-2.8-27.6 | S3-2.8-34.4 | S3-2.8-50 | S3-3.8-29.8 | S3-3.8-36.5 | S3-3.8-52.1 | S3-3.8-61.2 |
| Drying Unit(Qty) | 7 | 8 | 9 | 7 | 8 | 9 | 10 |
| Bed width(m) | 2.8 | 3.8 | |||||
| Drying Length(m) | 27.6 | 34.4 | 50 | 29.8 | 36.5 | 52.1 | 61.2 |
| Material Thickness(mm) | 30-500 | ||||||
| Drying Temperature (ºC) | 50-140 | ||||||
| Steam Pressure(MPa) | 0.4-0.8 | ||||||
| Steam Consumption (kg/h) | 844-1688 | 1126-2252 | 1783-3564 | 1146-2293 | 1529-3058 | 2421-4841 | 2930-5860 |
| Drying Time (h) | 1.5-7 | 1.5-7 | 1.5-8 | 1.5-7 | 1.5-7 | 1.5-8 | 2.2-9 |
| Evaporation Capacity(kg/H2O/h) | 603-1206 | 804-1608 | 1273-2546 | 819-1638 | 1092-2184 | 1729-3458 | 2093-4186 |
| Total Power (kw) | 104 | 139 | 220 | 142 | 189 | 300 | 363 |
| Overall Dimensions | 27.6x4.33x3 | 34.4x4.33x3 | 50x4.33x3 | 30x5.43x3.2 | 36.7x5.43x3.2 | 52.3x5.43x3.2 | 61.3x5.43x3.2 |
| Total Weight (kg) | 11000 | 14000 | 20000 | 16000 | 19000 | 26000 | 31000 |
B:Two pass Two Sages:
| Multilayer bed plate Dryer | ||||||
| Model Item | T2-2.8-26.4 | T2-2.8-33.1 | T2-2.8-52.2 | T2-3.8-26.4 | T2-3.8-33.1 | T2-3.8-52.2 |
| Mesh Belt(m) | 2.8 | 3.8 | ||||
| Drying Length(m) | 26.4 | 33.1 | 52.2 | 26.4 | 33.1 | 52.2 |
| Material Thickness(mm) | 30--500 | |||||
| Drying Temperature (ºC) | 50~140 | |||||
| Steam Pressure(MPa) | 0.4~0.8 | |||||
| Steam Consumption (kg/h) | 844-1688 | 1126-2252 | 1783-3564 | 1146-2293 | 1529-3058 | 2421-4841 |
| Drying Time (h) | 1.5-7 | 1.5-7 | 1.5-8 | 1.5-7 | 1.5-7 | 1.5-8 |
| Evaporation Capacity(kg/H2O/h) | 603-1206 | 804-1608 | 1273-2546 | 819-1638 | 1092-2184 | 1729-3458 |
| Total Power (kw) | 104 | 139 | 220 | 142 | 189 | 300 |
| Overall Dimensions | 27.6x4.33x3 | 34.4x4.33x3 | 50x4.33x3 | 30x5.43x3.2 | 36.7x5.43x3.2 | 52.3x5.43x3.2 |
| Total Weight (kg) | 11000 | 14000 | 20000 | 16000 | 19000 | 26000 |
