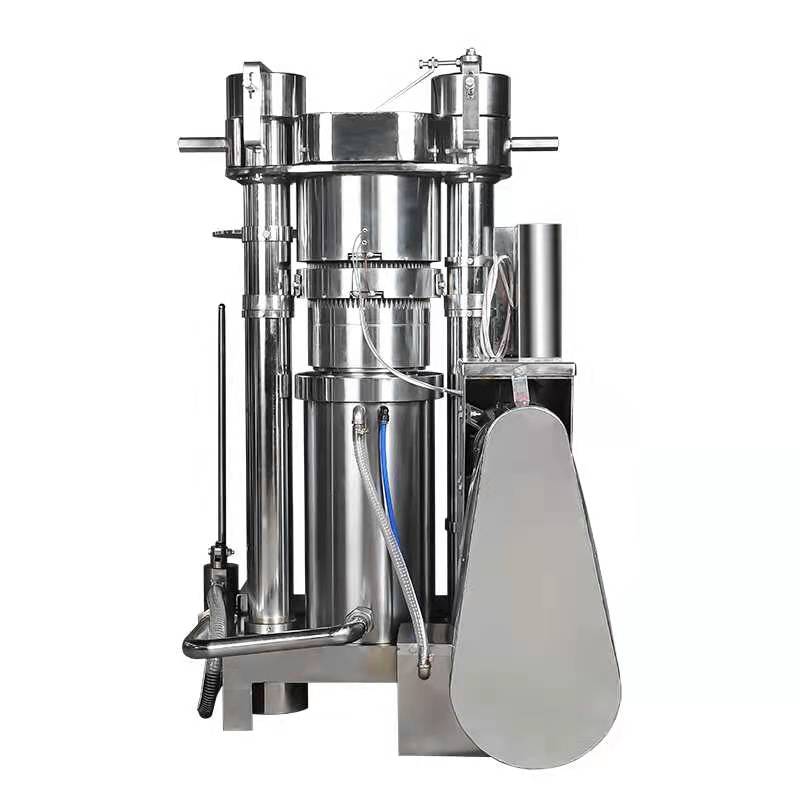

Product introduction
1. Wide range of pressing: (hot pressing and cold pressing can be realized)
hot pressing oil: sesame, flax, peanut, wheat germ, corn germ, etc;
Cold pressed health oil: walnut kernel, pine seed, almond, olive, macadamia nut, camellia seed, etc; Condiments and traditional Chinese medicine: pepper, mustard seed, perilla, etc.
2. Good oil quality: pure physical pressing, high oil yield, no temperature during cold pressing, no damage to the organic components of oil, good oil quality, low impurity content, high cake value and wide application range.
3. Convenient operation and high efficiency: mechatronics design, low failure rate and high degree of automation,
It can be completed within 8 minutes from loading to cake discharging, with exquisite appearance and simple operation (one person can operate 3-4 sets).
Item | 6YY-190 | 6YY-220 | 6YY-220B | 6YY-270 | 6YY-270B |
Cylinder -Diameter-mm | 190 | 220 | 220 | 270 | 270 |
Diameter of cake-mm | 235 | 248 | 270 | 300 | 339 |
Height of Drum-mm | 400 | 470 | 470 | 465 | 465 |
Volume per Time-Kg | 8 | 10 | 12 | 15 | 20 |
System Pressure-Mt | 60 | 60 | 60 | 60 | 60 |
Working Pressure-Mt | 170 | 227 | 227 | 343 | 343 |
Material Pressure-MPa | 41 | 47 | 40 | 48.6 | 41 |
Dimension-mm | 1000*970*1420 | 1150*1000*1570 | 1180*1000*1600 | 1200*1150* 1550 | 1150*1200*1550 |
Machine Wight-Kg （MT） | 1.05 | 1.4 | 1.45 | 1.6 | 1.68 |
Please contact us for more detailed data.
