GL bucket elevator is a special equipment designed and manufactured for vertical lifting of granular, massive and powdery solid articles, such as snack food, medicine, grain, etc. The maximum hourly lifting capacity can reach 18 cubic meters, and can be stepless speed regulation.
Product features
A: Reasonable structure, small floor area, stable operation and low noise, suitable for long-term continuous operation;
B: The hopper material is food grade PP, which meets the food hygiene and safety standards; The hopper drops vertically, and the door can be opened for cleaning;
C: Leakage and splash proof design at the feeding place. For materials with strong bounce, it can be equipped with electromagnetic vibration feeder to feed evenly and adjust the speed;
D: The power box of the machine is equipped with a friction protection system, and the hopper will stop automatically when it is overloaded or accidentally jammed during operation.
Applications:
It is designed for fast and convenient conveying of powders, they are used in leading processing plants for conveying dry powder or grain size materials.

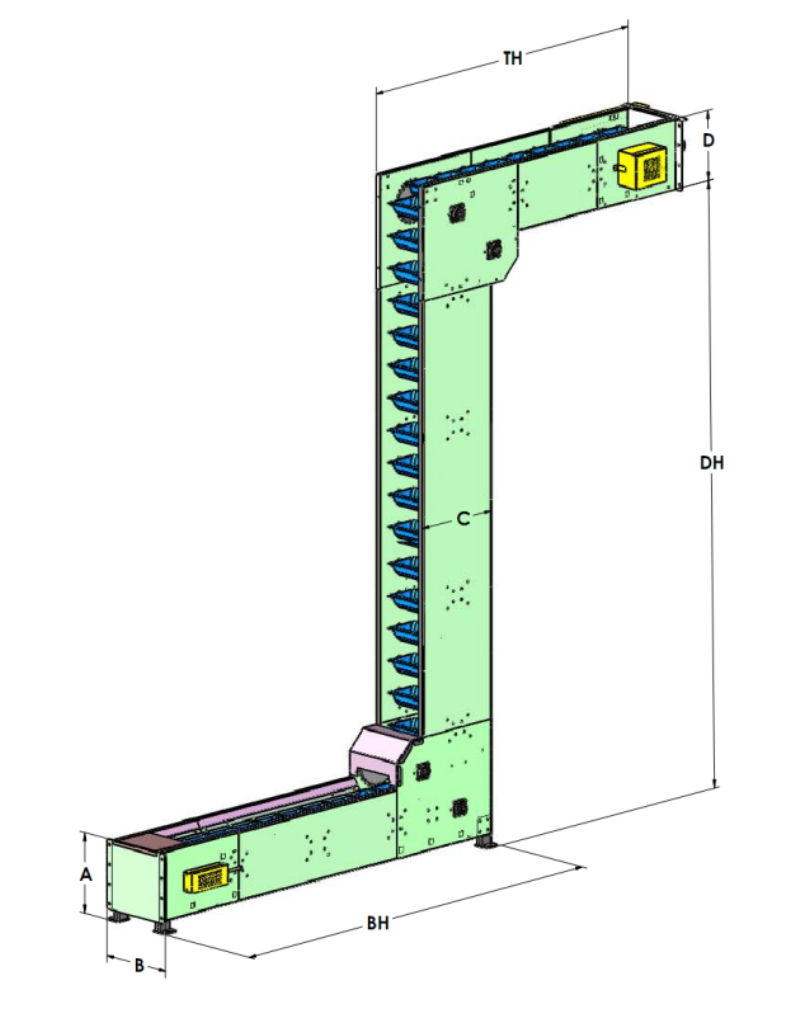

| Model | GL2000 | GL5000 |
| Capability(m3/H) | 6 | 18 |
| BH(min) | 1340mm | 1680mm |
| DH(min) | 1200mm | 1310mm |
| TH(min) | 1315mm | 1680mm |
| A | 420mm | 500mm |
| B | 555mm | 640mm |
| C | 500mm | 560mm |
| D | 342mm | 400mm |
