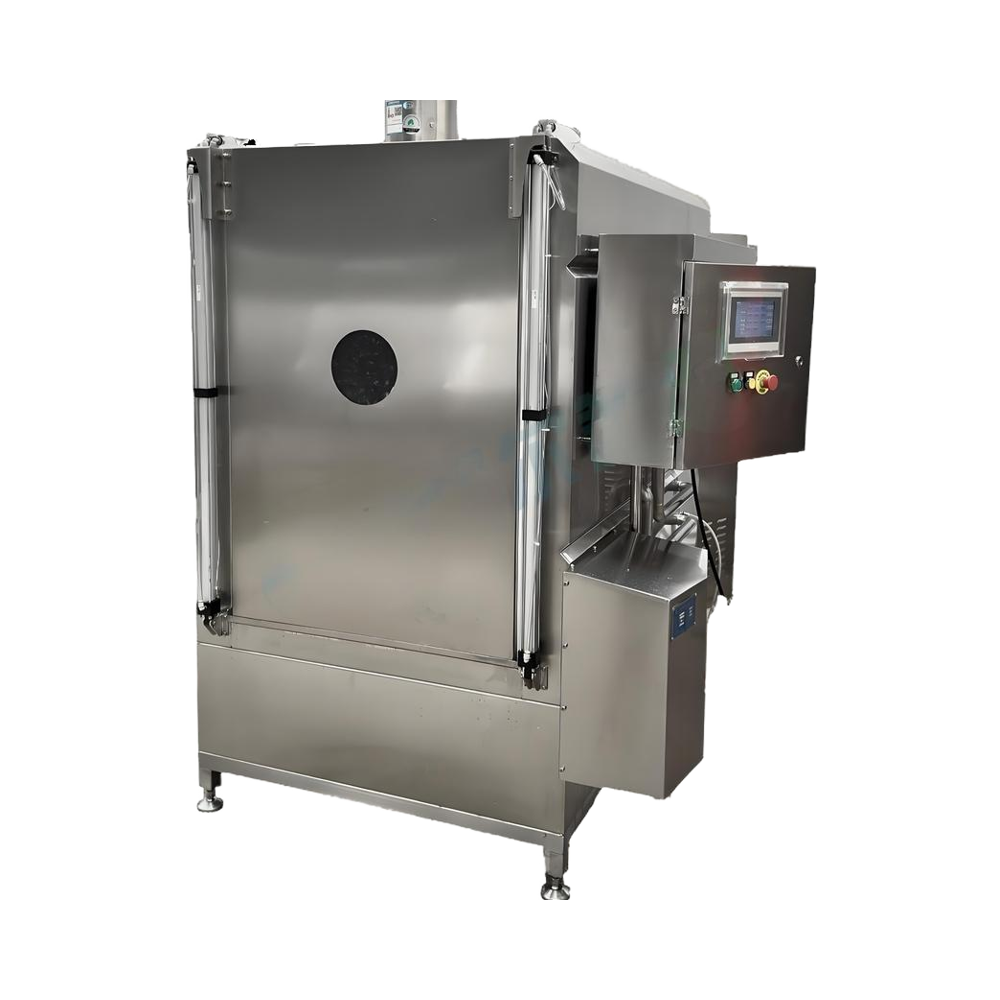

This trolley Washing Machine is designed for efficient cleaning of 200L meat trolleys, ideal for food and beverage processing industries. Built with SUS304 stainless steel, it ensures durability and rust resistance. The machine offers adjustable washing times and a high-pressure cleaning system, achieving 40-60 pcs/h cleaning ability. Equipped with a filtration system and steam heating, it supports cold water cleaning and optional washing solutions. Easy to maintain, it operates with PLC control in energy-efficient performance.
Click to watch the video：
| Parameter | Specification |
|---|---|
| Power Supply | 3x380V+N+PE/50Hz |
| Control Voltage | 24V DC |
| Installed Power | 10.1 kW |
| External Dimensions | 1719 x 1667 x 2074 mm (L x W x H) |
| Cleaning Product Specification | 200L Barrel Carts |
| Cleaning Capacity | 40-60 units/hour |
| Spray Cleaning | 5 groups * 360° rotation |
| Barrel Cart Lifting | 175° flipping |
| Cleaning Water Pressure | 0.4-0.6 MPa |
| Cleaning Water Temperature | 60-80°C (adjustable) |
| Municipal Water Supply | 0.3-0.4 MPa DN25 (internal thread) |
| Water Consumption | 7 L/unit (adjustable) |
| Steam Supply | 4 bar DN32 (flange) |
