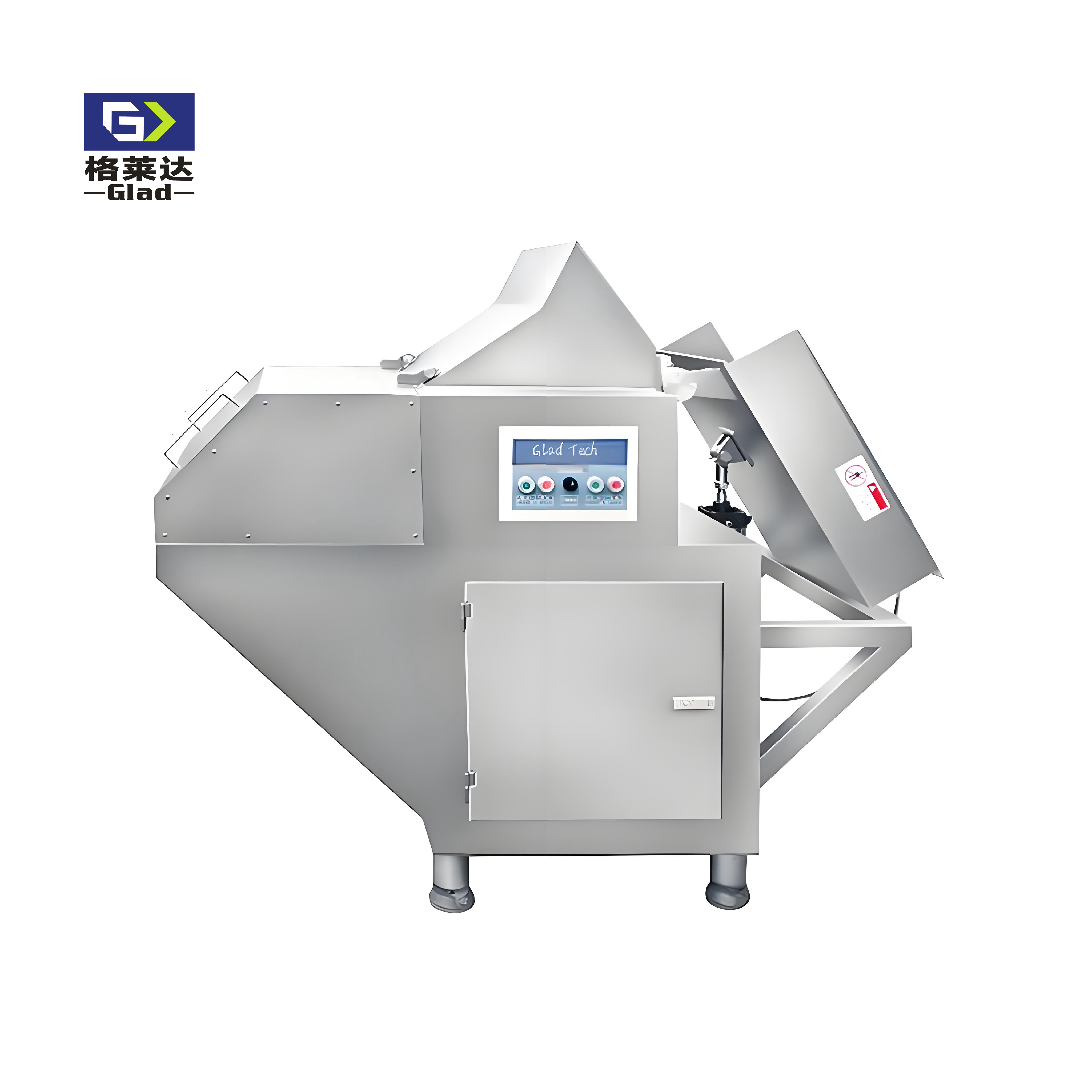

Meat crusher
Meat crusher

The Frozen Meat Flaker is designed to break up hard and frozen food blocks including meat and dairy products without destroying the texture of the product, eliminating the inconsistently sized particles and product emulsification.

The  Frozen Block Pre-Breaker can take any frozen product without thawing from -18°c to -3°c saving operator's valuable time and energy. The blocks can be processed within a remarkable  seconds to produce an extraordinary production of up to 3-4t per hour.

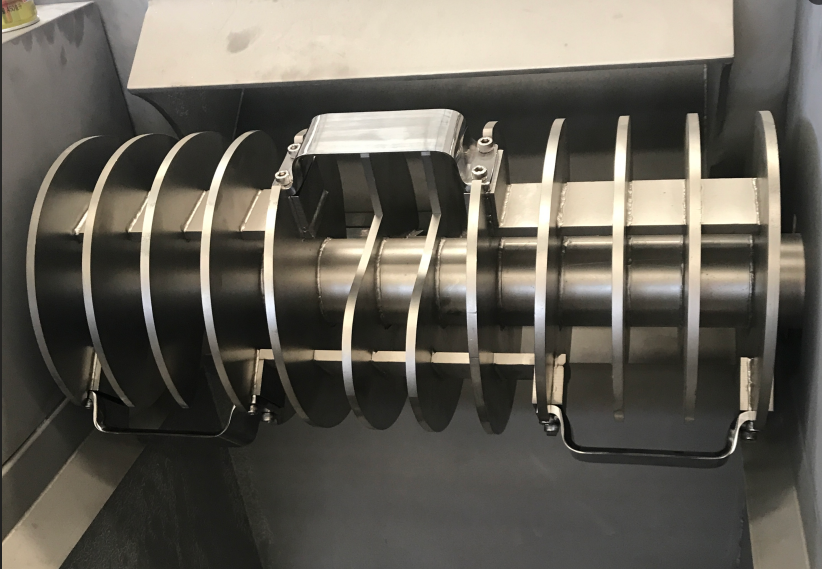

Maximum output of the  Frozen Block Pre-Breaker is ensured by the high cutting speed of the rotor type blade mechanisms. The frozen blocks are drawn to the slow speed rotor blades with high torque cutting forces achieving exceptional production output rate.

The frozen meat blocks are easy to load into the cutting area, where they are transformed by sharp blades into slices or with cross blades into smaller cube pieces. It is simple and safe to operate.

The  Frozen Block Pre-Breaker discharges product into 200L euro bins , various size tubs or onto conveyor for continuous feeding into Helper range of Mixer Mincers for further processing.  higher production output can be achieved if continually conveyor fed.

The robust and reliably built quality means low maintenance and operating costs, providing years of trouble-free operation.



Main Parameters:

Motor power7.5 KW
Capacity3000-4000kg/h
Width of the material track540mm
Height of the material track200mm
Measurement of the frozen meat650*500*180mm
Weight of frozen meat5-40kg
Thickness of finished blocks5/10/20/30mm
Temperature of meat-18 ºC T0
Weight of machine600kg
Dimension of equipment1750*1000*1500mm
